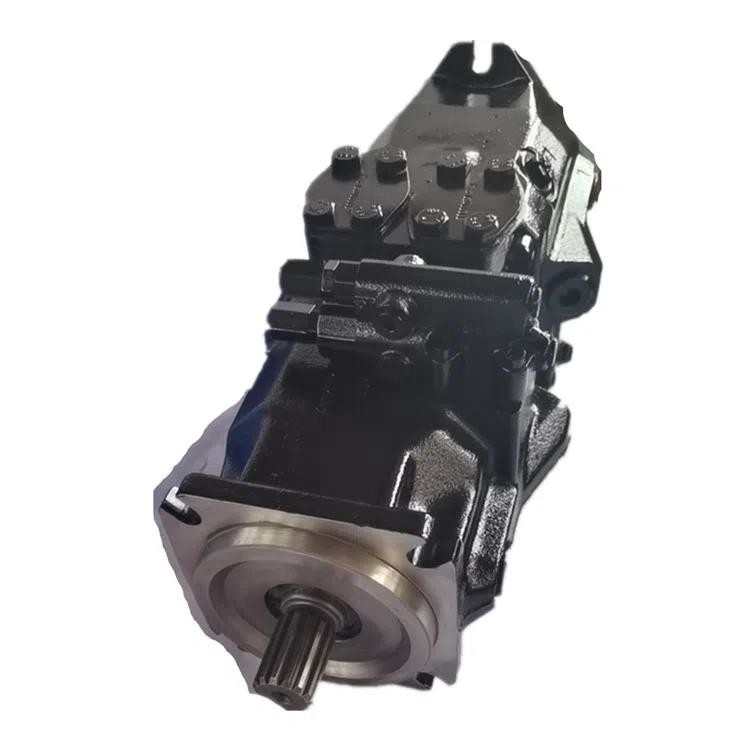

Stock Product A20VLO190 high pressure pUMP A20VLO60/95/190/260/520 Rexroth Hydraulic Piston Pump Variable Displacement
A20VLO60 A20VLO95 A20VLO190 A20VLO260 A20VLO520 Hydraulic variable A11VLO and Rexroth A20VO double Pump.
high pressure swash plate piston pump apply for open circuit system, build-in centrifugal pump which can enhance 19% max rotation speed, mainly use for travel machine.
Driven by axial shaft, available to connect with gear pump or axial piston pump with same specification. The out flow is proportional to the drive speed and infinitely variable between maximal and zero.
1. Designed primarily for use in mobile applications.
2. The pump operates under self-priming conditions, with tank pressurization, or with an optional built-in charge pump (impeller).
3. A comprehensive range of control options is available matching any application requirement.
4. Power control option is externally adjustable, even when the pump is running.
5. The through drive is suitable for adding gear pumps and axial piston pumps up to the same, i.e. 100% through drive.
BTPS AVAILABLE BRAND
A20VLO190 Axial Piston Variable Double Pump A20VLO
Better parts company specialize in research and development,production and sales of hydraulic products.We have more than 8 years experience focusing on the overseas Market.
Our main products is hydraulic pump,motor,valve,gear box ,gear pump,spare parts,ect.Involved in hydraulic brands:Rexroth,Parker,Eaton-Vickers,Linde,Sauer-Danfoss and so on.We always adhere to the "High Quality,best service,competitive price ”product concept.
Welcome new and old customers from all over the world to contact us for future business relationship and mutual sucess
||◆Swashplate type axial piston variable displacement pump for closed circuit hydrostatic transmission
◆The flow is proportional to the driving speed and displacement and can be infinitely variable;
◆The flow rate increases from zero to its maximum value with the swash plate swing angle;
◆Swing the swash plate over the neutral position can smoothly change the flow direction of the liquid;
◆Multiple variable modes that are easy to match with various control and regulation systems;
◆The pump is equipped with two relief valves on the high pressure oil side to protect the hydrostatic transmission (pump and motor) from overloading;
◆The high pressure relief valve also has the function of oil filling valve;
◆Built-in auxiliary pump is used as charge pump and control pump;
◆The maximum charging pressure is limited by a built-in charging relief valve;
◆Full series with built-in pressure shut-off valve;
The characteristics of Eternal A20VLO pump:
1. The capacity of the pump is in proportion to its rotating speed and displacement; the stepless adjustment of the displacement
can be materialized by regulating the swivel angle of its swash plate.
2. With through-shaft structure, able to form combination pump.
3. Position constraint return mechanism.
4. Spherical flow distribution, the piston is inclined around the shaft.
5. Equipped with swivel angle indicator of swash plate.
6. Stepless variable displacement.
7. Excellent suction performance.
8. Rated working pressure of 35MPa.
9. Fast control response.
10. Low noise.
11. Long lifespan.
12. Excellent power/weight ratio.
13. Modular design.
14. The drive shaft is able to bear the axial and radial load.
15. Optional installation position.
16. It can operate with HF fluid to lower the operating parameter.
17.Completely interchangeable with original
Eternal products including Piston Pump, Vane Pump, Gear Pump, Hydraulic Valve, Hydraulic Motor, Electric Motor, Oil Cooler, Accumulator and other hydraulic accessories etc
Hydraulic Piston Pump Series including CY, A2F, A2FO, A7V, A4V, A10V Series, which is the same as Orignal Rexroth, the same appreance, mounting size and working perofrmance.
The products are widely used in machine tool, forging machinery, metallurgy machinery, engineering machinery, mine machinery and other hydraulic systems. They also can be used as hydraulic motors if the valve plate is changed into motor type.
