Home > products > Hydraulic Piston Pumps > Rexroth A15VSO Hydraulic Piston Pumps A15VLO A15VLO175 A15VLO280 A15VSO110

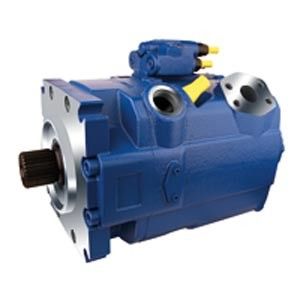

Rexroth A15VSO Hydraulic Piston Pumps A15VLO A15VLO175 A15VLO280 A15VSO110

Product Details

Brand Name: BTPS

Model Number: Rexroth A15VSO series

Payment & Shipping Terms

Minimum Order Quantity: 2

Packaging Details: wooden box

Delivery Time: 7 days

Payment Terms: T/T

Supply Ability: 2000pcs/year

Get Best Price
Highlight:

Rexroth A15VSO Hydraulic Piston Pumps

,

Hydraulic Piston Pumps A15VLO

,

Rexroth A15VSO A15VLO280 A15VSO110

Place Of Origin:
STANDARD
Single Package Size:
50X50X50 Cm
Appliion:
Excavators/HEAVY EQUIPMENT
Theory:
Rotary Pump
Single Gross Weight:
60.000 Kg
Warranty:
12months
Material:
Iron
Product Name:
A15VSO
Feature:
High Efficiency High Pressure
Place Of Origin:
STANDARD
Single Package Size:
50X50X50 Cm
Appliion:
Excavators/HEAVY EQUIPMENT
Theory:
Rotary Pump
Single Gross Weight:
60.000 Kg
Warranty:
12months
Material:
Iron
Product Name:
A15VSO
Feature:
High Efficiency High Pressure
Rexroth A15VSO Hydraulic Piston Pumps A15VLO A15VLO175 A15VLO280 A15VSO110

Rexroth A15VSO Hydraulic Piston Pumps A15VLO A15VLO175 A15VLO280 A15VSO110 0





Rexroth A15VSO Hydraulic Piston Pumps A15VLO A15VLO175 A15VLO280 A15VSO110 1



AXIAL PISTON VARIABLE PUMP A15VSO SERIES 11



SERIE11

SIZES 110 TO 280

NOMIAL PRESSURE 350BAR

PEAK PRESSURE 420BAR

OPEN CIRCUIT



Safety instructions


- A11VO pumps are designed for use in open circuits.
- Project planning, assembly and commissioning of axial piston elements must be carried out by qualified personnel.
- Work line ports and functional ports are designed for hydraulic lines only.
- There may be a risk of burning of axial piston elements (especially electromagnets) during and shortly after operation. Appropriate safety measures should be taken (e.g. wearing protective clothing).
- Depending on the operating conditions of the axial piston element (operating pressure, oil temperature), the characteristics may change.
- Pressure oil port:
Oil opening and fixed thread design for maximum specified pressure. The manufacturer of the machine or system must ensure that the safety factor of the connecting elements and lines meets the specified operating conditions (pressure, flow, hydraulic fluid, temperature).
- The data and instructions contained herein must be followed.
- Using the following tightening torque:
· Threaded holes for axial piston elements:
The maximum allowable tightening torque MG Max is the maximum for threaded holes and shall not exceed this value.
Joint:
Please refer to manufacturer's instructions for tightening torque of joints used.
· Fixing screw:
For fixed screws that meet DIN 13, we recommend that the tightening torque be checked separately according to VDI 2230.
· Locking screw:
For the metal locking screw supplied with the axial piston element, apply the tightening torque MV required for the locking screw.
- The product component is not certified and approved in accordance with the general machine safety concept of DIN EN ISO 13849.





Rexroth A15VSO Hydraulic Piston Pumps A15VLO A15VLO175 A15VLO280 A15VSO110 2 SERIES A15VSO Axial piston variable pump
SPECIFIION 110,145,175,210,280

WORKING PRESSURE Common pressure 350bar, peak pressure 420bar

Control mode:
Power controller
LR - Fixed Control
L4 - Electrical proportional adjustment
Total power controller
CR, PR - ultra vires control, hydraulic proportional adjustment, high pressure
Stroke controller
E2 - Electrical proportional adjustment
E6 - Two-point electrical control
H3, H4 - Hydraulic proportional adjustment, pressure control
H5, H6 - Hydraulic proportional adjustment, pressure control
Pressure controller
DR - Fixed settings
DG - Hydraulic Remote Control
DP - For parallel operations
Pressure controller with mooring function
MD - Fixed setting

FEATURES

Rexroth Rexroth plunger pumpS A15VSO, A15VLO Series Features:
1. Swashplate type axial piston variable pump for hydraulic transmission in open circuit.
2. More suitable for static hydraulic appliions.
3. The flow rate of the pump is proportional to the driving speed and displacement.
4. By adjusting the angle of the rotating swash plate, the stepless adjustment of the flow rate can be realized.
5. The pump can be self-priming or working through the booster pump.
6. The wide range of control devices has high adaptability and can realize various control and adjustment functions required for stationary hydraulic appliions.
7. 100% mooring function can be realized by special controller (swing mode, motor speed regulation mode).
8. The universal thru-axle drive is suitable for installing gear pumps and axial piston pumps (even with the same specifiions), that is, to achieve 100% thru-axle drive.
9. Compact design
10. High efficiency
11. High power density
12. Low noise level
