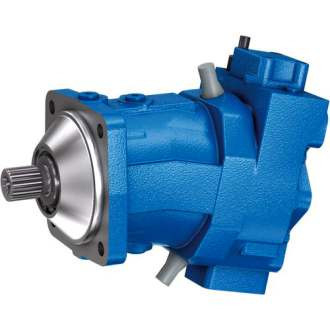

Replacement A7vo Rexroth Hydraulic Axial Piston Pump A7VO12 A7VO28 A7VO55 A7VO80

Hydraulic Pump Replacement axial piston variable pump A7VO 12 Variable Piston Pump Hydraulic A7VO12 A7VO28 A7VO55 A7VO80

Safety instructions

- A7VO pumps are designed for use in open circuits.

- Project planning, installation and commissioning of axial piston units must be carried out by qualified personnel.

- Please read the instruction manual thoroughly before using the axial piston unit. On request from Bosch Rexroth.

- There may be a risk of burning of axial piston units (especially electromagnets) during and shortly after operation. Appropriate safety measures should be taken (e.g. wearing protective clothing).

- The characteristics of the axial piston unit may vary with different operating conditions (operating pressure, oil temperature).

- Working pipeline oil outlet:

· Oil opening and fixed thread design for maximum specified pressure. The manufacturer of the machine or system must ensure that the safety factor of the connecting elements and lines meets the specified operating conditions (pressure, flow, hydraulic fluid, temperature).

· Work line oil outlet and functional oil outlet are only used for hydraulic line.

- Pressure shutoff valves and pressure controllers do not provide overpressure safety protection. Relief valves will be provided in the hydraulic system.

- The data and instructions contained herein must be followed.

- The product cannot be approved as a component complying with ISO 13849 general mechanical safety concept.

- Using the following tightening torque:

Joint:

Please refer to manufacturer's instructions for tightening torque of joints to be used.

· Mounting bolts:

For mounting bolts with ISO metric threads to DIN 13 and ASME B1.1 threads, it is recommended to check the tightening torque of individual boxes according to VDI 2230.

· Threaded hole of axial piston unit:

The maximum allowable tightening torque MG Max is the maximum for internal threaded holes and shall not exceed this value.

· Locking screw:

For metal locking screws supplied with axial piston units, the tightening torque MV required for the locking screws shall be used.

	SERIES	A7VO variable pump (for walking machinery)
	SPECIFIION	28,55,80,107,160
		SERIES 6
	WORKING PRESSURE	35MPa,PEAK PRESSURE:40MPa
Control mode: LR power control DR pressure control HD hydraulic control, associated with pilot pressure EP electrical control with proportional electromagnet	FEATURES	– Oblique structure axial cone piston variable pump, used for open loop hydrostatic transmission - Suitable for walking machinery and industrial fields - The output flow is proportional to the speed and pump displacement, and the flow rate is stepless adjustable from maximum to zero (qvmax to QV min = 0). - Multiple variable mode is suitable for various adjustment and control devices - Strong and compact bearing system, long service life
