Rexroth A7VO Hydraulic Axial Piston Pump A7VO12 A7VO28 Variable Piston Hydraulic Pump A7VO55 A7VO80

Product Details

Place of Origin: China

Brand Name: BTPS

Model Number: A7VO series

Payment & Shipping Terms

Minimum Order Quantity: 2

Packaging Details: wooden box

Delivery Time: 7 days

Payment Terms: T/T

Supply Ability: 2000pcs/year

Get Best Price
Product Details
High Light:

Rexroth A7VO Hydraulic Axial Piston Pump

,

A7VO28 Variable Piston Hydraulic Pump

,

Rexroth A7VO Variable Piston Hydraulic Pump

Displacement:
55cm³
Place Of Origin:
China
Appliion:
Machinery
Usage:
Hydraulic Motor
After-sales Service Provided:
Online Support, Free Spare Parts
Warranty:
1 Year, One Year
Material:
Iron
Displacement:
55cm³
Place Of Origin:
China
Appliion:
Machinery
Usage:
Hydraulic Motor
After-sales Service Provided:
Online Support, Free Spare Parts
Warranty:
1 Year, One Year
Material:
Iron
Product Description

Safety instructions

- A7VO pumps are designed for use in open circuits.

- Project planning, installation and commissioning of axial piston units must be carried out by qualified personnel.

- Please read the instruction manual thoroughly before using the axial piston unit. On request from Bosch Rexroth.

- There may be a risk of burning of axial piston units (especially electromagnets) during and shortly after operation. Appropriate safety measures should be taken (e.g. wearing protective clothing).

- The characteristics of the axial piston unit may vary with different operating conditions (operating pressure, oil temperature).

- Working pipeline oil outlet:

· Oil opening and fixed thread design for maximum specified pressure. The manufacturer of the machine or system must ensure that the safety factor of the connecting elements and lines meets the specified operating conditions (pressure, flow, hydraulic fluid, temperature).

· Work line oil outlet and functional oil outlet are only used for hydraulic line.

- Pressure shutoff valves and pressure controllers do not provide overpressure safety protection. Relief valves will be provided in the hydraulic system.

- The data and instructions contained herein must be followed.

- The product cannot be approved as a component complying with ISO 13849 general mechanical safety concept.

- Using the following tightening torque:

Joint:

Please refer to manufacturer's instructions for tightening torque of joints to be used.

· Mounting bolts:

For mounting bolts with ISO metric threads to DIN 13 and ASME B1.1 threads, it is recommended to check the tightening torque of individual boxes according to VDI 2230.

· Threaded hole of axial piston unit:

The maximum allowable tightening torque MG Max is the maximum for internal threaded holes and shall not exceed this value.

· Locking screw:

For metal locking screws supplied with axial piston units, the tightening torque MV required for the locking screws shall be used.





A7V SERIES A7VO variable pump (for walking machinery)
SPECIFIION 28,55,80,107,160
SERIES 6
WORKING PRESSURE 35MPa,PEAK PRESSURE:40MPa

Control mode:

LR power control

DR pressure control

HD hydraulic control, associated with pilot pressure

EP electrical control with proportional electromagnet

FEATURES

Oblique structure axial cone piston variable pump, used for open loop hydrostatic transmission

- Suitable for walking machinery and industrial fields

- The output flow is proportional to the speed and pump displacement, and the flow rate is stepless adjustable from maximum to zero (qvmax to QV min = 0).

- Multiple variable mode is suitable for various adjustment and control devices

- Strong and compact bearing system, long service life

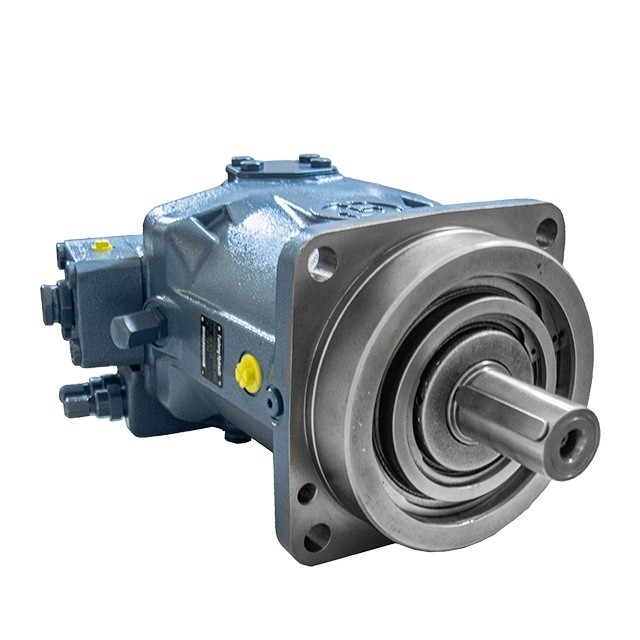

Rexroth A7VO Hydraulic Axial Piston Pump A7VO12 A7VO28 Variable Piston Hydraulic Pump A7VO55 A7VO80 1

BTPS AVAILABLE BRAND

Rexroth A7VO Hydraulic Axial Piston Pump A7VO12 A7VO28 Variable Piston Hydraulic Pump A7VO55 A7VO80 2

REXR0TH SERIES

A4V 40/56/71/90/125/250, A4VFO28

A4VSO 40/45/50/56/71/125/180/250/355/500/750/1000

REXR0TH SERIES

A4VF500, A4VTG71/90, A4VHW90

A4VG 28/40/45/56/71/90/105/125/140/175/180/250/500

REXR0TH SERIES A10VSO 16/18/28/45/52/63/71/85/100/140/180
REXR0TH SERIES A10VG 18/28/45/63, A10VM 18/35/63
REXR0TH SERIES A10V 43/63/74/85/100/140, A10VD 17/23/28/40/43/71
REXR0TH SERIES A10VO 10/18/28/45/52/53/60/63/71/72
REXR0TH SERIES A10VE 43/45/60, A10VEC60, A10VSF28
REXR0TH SERIES A11VO 40/60/75/95/110/130/145/160/175/190/200/210/250/260/280
REXR0TH SERIES

A11VG 12/19/35/50, A11VLO190/260

A11V 130/145/160/175/190

REXR0TH SERIES

A2F 05/12/23/28/55/80/107/160/200/250/355/500/1000

A2VK12/28, A2V 225/500/915

REXR0TH SERIES

A2FO 10/12/16/23/28/32/45/56/63/80/90/107/125/160/180/200/250/500

A2FE 23/28/32/45/56/63/80/107/125/160/180/200/250/355/500/1000

A2FM 23/28/32/45/56/63/80/107/125/160/180/200/250/355/500/1000

REXR0TH SERIES A7V 20/28/55/58/80/107/160/200/225/250/355/500/1000
REXR0TH SERIES A7VO 12/28/55/80/107/160/172/200/250/355/500
REXR0TH SERIES

A8VO 55/80/107/140/160/200

A8V 55/59/80/86/107/115/160/172/200

REXR0TH SERIES AP2D 12/16/21/25/36
REXR0TH SERIES A15VSO 175/210
REXR0TH SERIES

A6VE 28/55/80/107/160/200/250, A6V28

A6VM 28/55/80/107/115/140/160/200/250/355/500/1000
