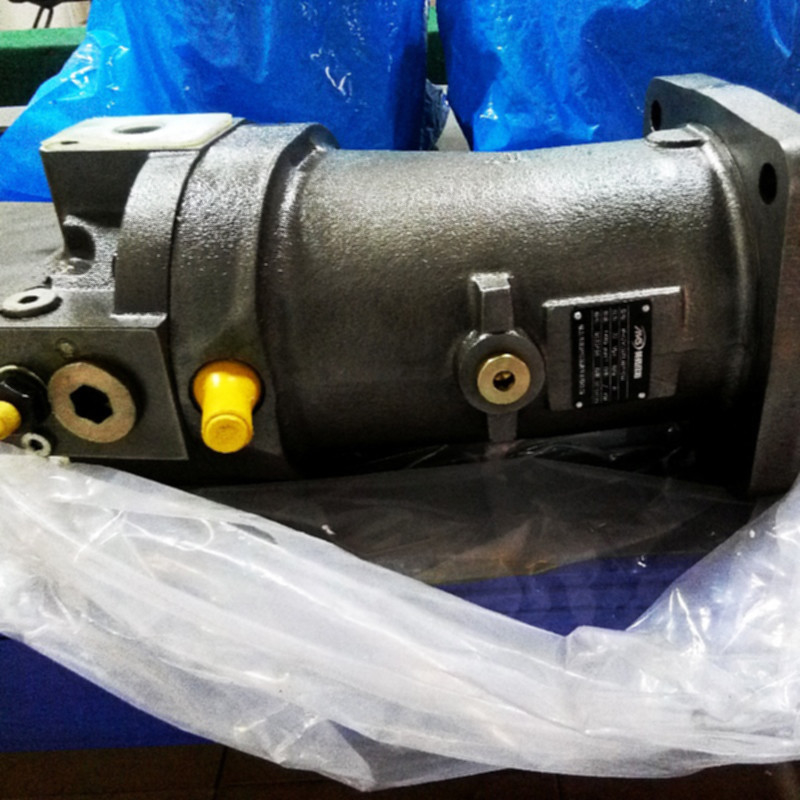

Rexroth A7V Axial Piston Variable Pump A7V58MA1RPF00 A7V78LV1LZF00 A7V107LV1LZF00 A7V500LV5.0RPFH0

Rexroth pump A7V series A7V58MA1RPF00 A7V78LV1LZF00 A7V107LV1LZF00 A7V500LV5.0RPFH0

Series:

A7V Series Series 2.0 or 5.1

work pressure:

Rated pressure 28MPa, peak pressure 35MPa

Specifiion:

20,28,40,55,58,80,78,107,117,160,250,355,500

Control mode:

LV- Constant power variable; LVS- Constant power load sensing variable; DR- constant pressure variable; DRS- Constant pressure load sensing variable; MA- Manual variable; El-electric proportional control; HD- Hydraulic control.

Features:

The variable axial plunger element is equipped with tapered plunger rotor group of oblique shaft design, suitable for open loop hydraulic drive;

Used for walking machinery operation and industrial appliions;

The flow rate of the hydraulic pump is proportional to the speed and displacement of the pump, and varies stepless from qvmax to Qvmin =0;

A complete range of control devices for each control and regulation function;

Compact and rugged bearing system with long service life;

Can provide long service life bearings for special oil and very long service life requirements;

Can work with mineral oil and fire resistant liquid;

High performance rotating components and spherical oil distribution plate can realize automatic centering, low rotational speed and high efficiency;

Low noise level.

Rexroth pump A7V series A7V58MA1RPF00 A7V78LV1LZF00 A7V107LV1LZF00 A7V500LV5.0RPFH0 hydraulic piston pump

– The A7V pump is designed to operate in an open circuit

– System design, installation and commissioning must be performed by trained technicians or dealers.

– All hydraulic ports can only be used to install hydraulic work lines.

– The housing (especially the electromagnet) can be very hot during and shortly after operation of the pump, so avoid burns; take appropriate safety precautions (wear protective clothing).

– Depending on the operating conditions (operating pressure, oil temperature) of the axial piston element, the performance curve may deviate.
