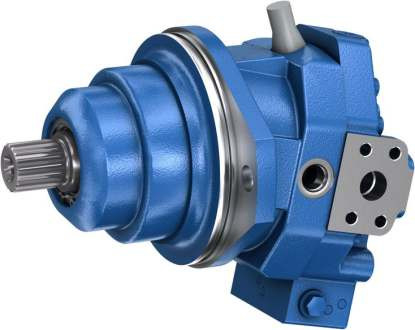

A6VE A6VE160HA1/63W-VZL020 A6VE28 A6VE55 A6VE250 A6VE Hydraulic Rexroth A6VE80 A6VE107 A6VE160 MOTOR
Details regarding the choice of hydraulic fluid
The correct choice of hydraulic fluid requires knowledge of the operating temperature in relation to the ambient temperature: in
a closed circuit the circuit temperature. The hydraulic fluid should be chosen so that the operating viscosity in the operating temperature range is within the optimum range - the shaded area of the selection diagram. We recommended that the higher viscosity class be selected in each case. Example: At an ambient temperature of X °C an operating temperature of 60 °C is set. In the optimum operating viscosity range (shaded area) this corresponds to the viscosity classes VG 46 or VG 68; to be selected: VG 68. Please note: The case drain temperature, which is affected by pressure and speed, is always higher than the circuit temperature. At no point in the system may the temperature be higher than 115 °C. If the above conditions cannot be maintained due to extreme operating parameters, please consult us.
Hydraulic fluid Before starting project planning, please refer to our data sheets RE 90220 (mineral oil), RE 90221 (environmentally acceptable hydraulic fluids) and RE 90223 (HF hydraulic fluids) for detailed information regarding the choice of hydraulic fluid and application conditions. The variable pump A4VG is unsuitable for operation with HFA, HFB and HFC. If HFD or environmentally acceptable hydraulic fluids are being used, the limitations regarding technical data and seals mentioned in RE 90221 and RE 90223 must be observed. When ordering, please indicate the used hydraulic fluid.
BTPS OEM AVAILABLE BRAND
The company is the first industry expert engaged in the maintenance of hydraulic pumps and motors in China, and has been engaged in professional sales and maintenance business in the hydraulic field for nearly 20 years since 1995, with skilled skills and rich on-site experience.
With domestic advanced hydraulic pump and hydraulic motor testing platform, strict implementation of product quality testing standards, to ensure that each hydraulic pump factory technical parameters are fully in line with the technical requirements of the original factory, can achieve the same use effect with the original Rexroth hydraulic pump.
Excellent hydraulic technology and experience highlight the quality while reducing the cost, greatly improve the cost performance.
Comus hydraulic company has set up offices in many places in the country, sales area staff have rich professional knowledge and on-site experience, will be the first time to provide you with professional and quality service.
To provide customers with high quality and maximum value of professional products and services, with sincerity and strength to win customers' understanding, respect and support. The company in line with the "customer first, quality first" service concept, strict implementation of product quality testing standards, and strive to be a trustworthy manufacturer of hydraulic pumps.
At present, Comus hydraulic pumps in iron and steel metallurgy, forging, ceramics, water conservancy and hydropower, engineering machinery, shipbuilding, mining, agricultural machinery and other fields have been vigorously developed, reliable quality and superior services have been recognized by the majority of customers. In the enterprise to reduce costs, ensure the production of outstanding contributions.
