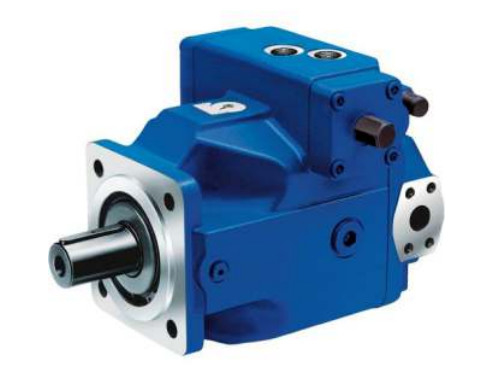

Bosch Rexroth Hydraulic Pump A4VSO180 A4VSO250 A4VSO355 A4VSO500 Variable Piston Pump

Product Details

Place of Origin: China

Brand Name: BTPS

Model Number: A4VSO Series

Payment & Shipping Terms

Minimum Order Quantity: 1PCS

Price: NEGOTIATION

Packaging Details: wooden box

Delivery Time: 7days

Payment Terms: T/T

Supply Ability: 200/MONTH

Get Best Price
Product Details
High Light:

Bosch Rexroth Hydraulic Pump A4VSO180

,

A4VSO500 Variable Piston Pump

,

A4VSO250 Bosch Rexroth Hydraulic Pump

Model Number:
A4VSO40/45/71/125/180/250/355/500
Theory:
Rotary Pump
Pump Type:
PISTON PUMP
Dimension(L*W*H):
600*400*400
Weight:
55
Material:
Import Material
Model Number:
A4VSO40/45/71/125/180/250/355/500
Theory:
Rotary Pump
Pump Type:
PISTON PUMP
Dimension(L*W*H):
600*400*400
Weight:
55
Material:
Import Material
Product Description

Bosch Rexroth Hydraulic Pump A4VSO180 A4VSO250 A4VSO355 A4VSO500 Variable Piston Pump 0

A4VSO A4VSO40 A4VSO71 A4VSO125 A4VSO180 A4VSO250 A4VSO355 A4VSO500 Bosch Rexroth Hydraulic Variable Piston Pump











SERIES A4VSOSeries    Series1/2/3
SPECIFIION 40,71,125,180,250,300,355,370,500
WORKING PRESSURE Nominal pressure 35MPa,Peak Pressure 42MPa
CONTROL METHOD DR - pressure control;
DP - parallel operation pressure control;
FR - flow control;
DFR - pressure and flow control;
LR - Hyperbolic Power Control;
MA - manual control;
EM - motor control;
HM-hydraulic control, control volume related;
HS - hydraulic control via servo/proportional valves;
EO - electric control;
HD - hydraulic control, pilot pressure related;
DS1 - auxiliary speed control;
DFE1 - Electro-hydraulic control system.
CHARACTERISTIC Axial piston pump with swash plate design, suitable for hydraulic transmission in open circuit;
Flow is proportional to input drive speed and displacement. By adjusting the angle of the swash plate, the output flow can be adjusted steplessly;
Excellent oil absorption characteristics;
low noise level;
long service life;
Modular design;
short response time;
Variable speed thru-shaft drive options;
Visual swing angle indior;
Optional installation loion;
Operation with HF fluids possible with reduced operating data There is a special version available for operation with HFC fluids.



  • The variable displacement axial piston pump type A4VSO in swashplate design is designed for open circuit hydrostatic drives
  • The flow is proportional to the input drive speed and displacement.
  • By adjusting the swashplate., it is possible to infinitely vary the flow.
  • Infinitely variable displacement Slot-controlled swashplate design.
  • Good suction characteristics
  • Permissible nominal operating pressure 350 bar
  • Low noise level,Long service life
  • Drive shaft capable of absorbing axial and radial loads
  • Modular design, Good power/weight ratio
  • Short control times
  • Through drive and pump combinations possible
  • Swash plate angle indior
  • Optional mounting position
  • Operation on HF fluids under reduced operational,parameters
Bosch Rexroth Hydraulic Pump A4VSO180 A4VSO250 A4VSO355 A4VSO500 Variable Piston Pump 1Bosch Rexroth Hydraulic Pump A4VSO180 A4VSO250 A4VSO355 A4VSO500 Variable Piston Pump 2
Bosch Rexroth Hydraulic Pump A4VSO180 A4VSO250 A4VSO355 A4VSO500 Variable Piston Pump 3
