BETTER PARTS Machinery Co., Ltd. bbonniee@163.com 86--13535077468
Product Details
Place of Origin: China
Brand Name: BTPS

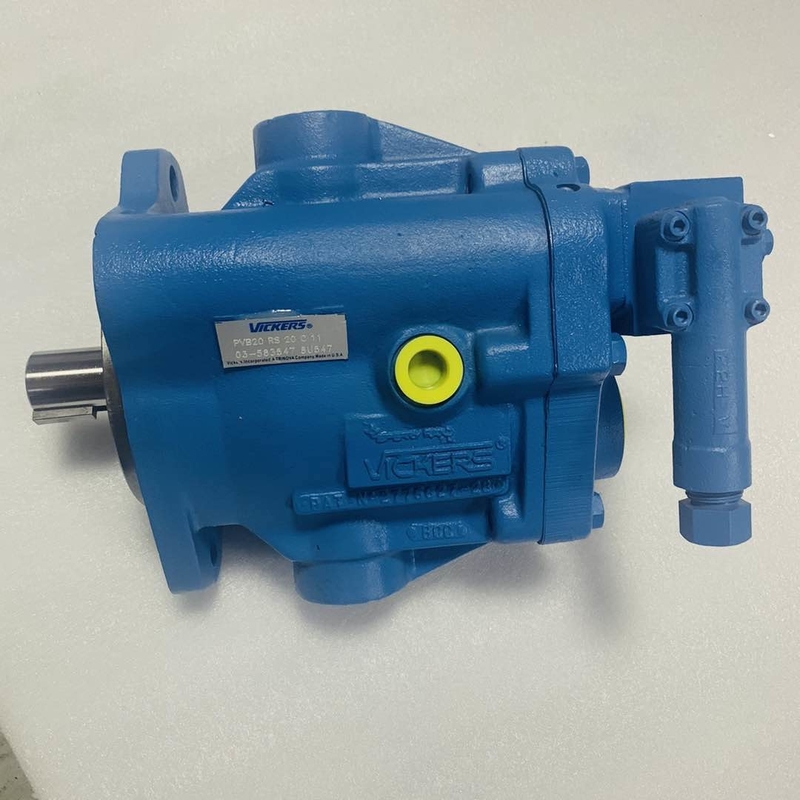

Model Number: EATON VICKERS PVB series
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: NIGOTIATION
Packaging Details: wooden box
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 2000pcs/year
Displacement: |
21.1cc/rev |
Rotation: |
Right From Shaft End |
Product Name: |
EATON VICKERS PVB Series |
Feature: |
High Efficiency High Pressure |
Packing: |
Standard |
Maximum Flow Rate: |
1800 R/min |
Usage: |
Oil |
Appliion: |
Excavator/machinery |
Fuel: |
Disel/hydraulic Oil |
Power: |
Hydraulic |
MAX Pressure: |
172 Mpa |
Structure: |
Piston Pump |
Standard Or Nonstandard: |
Standard |
Displacement: |
21.1cc/rev |
Rotation: |
Right From Shaft End |
Product Name: |
EATON VICKERS PVB Series |
Feature: |
High Efficiency High Pressure |
Packing: |
Standard |
Maximum Flow Rate: |
1800 R/min |
Usage: |
Oil |
Appliion: |
Excavator/machinery |
Fuel: |
Disel/hydraulic Oil |
Power: |
Hydraulic |
MAX Pressure: |
172 Mpa |
Structure: |
Piston Pump |
Standard Or Nonstandard: |
Standard |
|
|
SERIES |
PVB series variable displacement piston pump |
|
SPECIFIION
|
PVB5,PVB10,PVB15,PVB20,PVB25,PVB29,PVB45
|
|
|
The control methods are:
• Pressure with or without remote control compensator • Pressure compensator with adjustable displacement control Load sensing compensator • Handwheel control |
FEATURES
|
Vickers' range of axial piston pumps PVB includes both quantitative and variable types that achieve high performance and efficiency using a wide range of hydraulic oils. The volumetric efficiency and mechanical efficiency of the quantitative type are high. Variable types can be closely matched to the needs of pressure and/or flow.
|
|
Basic model designation |
Geometric dispalcement, cm3/r (in3/r) |
Maximum shaft speed (r/min) | Maximum outlet pressure, bar (psi) | ||||
|
Anti-wear hydraulic oil |
Water-in– oil emulsion (40%/60%) | Water- glycol | Anti–wear hydraulic oil |
Water glycol |
Water-in– oil emulsion (40%/60%) |
||
| PFB5 | 10,55 (0.64) | 3600 | 210 (3000) | ||||
| PFB10 | 21,10 (1.29) | 3200 | 1800 | 1800 | 210 (3000) | 175 (2500) | 175 (2500) |
| PFB20 | 42,80 (2.61) | 2400 | 175(2500) | ||||
| PVB5 | 10,55 (0.64) | 210 (3000) | 140 (2000) | 140 (2000) | |||
| PVB6 | 13,81 (0.84) | 140 (2000) | 100 (1500) | 100 (1500) | |||
| PVB10 | 21,10 (1.29) | 210 (3000) | 140 (2000) | 140 (2000) | |||
| PVB15 | 33,00 (2.01) | 1800 | 1800 | 1800 | 140 (2000) | 100 (1500) | 100 (1500) |
| PVB20 | 42,80 (2.61) | 210 (3000) | 140 (2000) | 140 (2000) | |||
| PVB29 | 61,60 (3.76) | 140 (2000) | 100 (1500) | 100 (1500) | |||
| PVB45 | 94,50 (5.76) | 210 (3000) | 140 (2000) | 140 (2000) | |||
| PVB90 | 197,50 (12.0) | 1800 | 1200 | 1200 | |||
Bothfixed and variable displacement models make up this range of axial piston pumps.Their high performance ratings and efficiencies are achieved with a variety of hydraulic fluids.Fixed displacement models are noted for their volumetric and mechanical efficiencies.Variable displacement models can closely match pressure and/or flow demand with a control selected from:Pressure compensator with or without a remote control facility.2.Pressure compensator with adjustable displacement control.3.Load sensing compensator.4.Machanical(level) control.5.Handwheel control.
