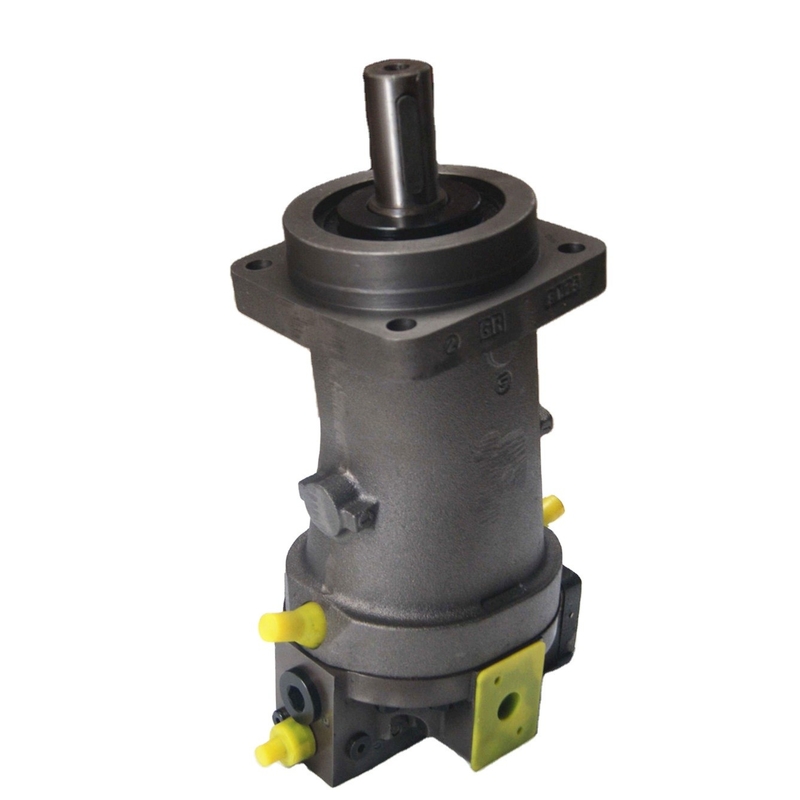

A7V Series Rexroth Variable Displacement Pump A7V20 A7V28 A7V50 A7V58 A7V78 A7V80 A7V107 A7V117 A7V160

Product Details

Place of Origin: China

Brand Name: BTPS

Model Number: A7V

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 980USD

Packaging Details: Standard Wooden

Delivery Time: 7days

Payment Terms: T/T

Supply Ability: 200/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                A7V Series Variable Displacement Pump, Variable Displacement Pump A7V20 A7V28, rexroth a7v A7V117 A7V160


Samples:	A7V58MA1RPF00	Brand Name:	REXROTH
Dimension(LWH):	60x47x30	Pump Type:	PISTON PUMP
Warranty:	1 Year	Single Gross Weight:	50
Package Type:	Wooden Box	Material:	Imported Material

Samples:	A7V58MA1RPF00
Brand Name:	REXROTH
Dimension(LWH):	60x47x30
Pump Type:	PISTON PUMP
Warranty:	1 Year
Single Gross Weight:	50
Package Type:	Wooden Box
Material:	Imported Material

Product Description

A7V Series Rexroth Variable Displacement Pump A7V20 A7V28 A7V50 A7V58 A7V78 A7V80 A7V107 A7V117 A7V160 0

A7V Variable Piston Pump Variable Displacement Pump Rams Pump A7V20 A7V28 A7V50 A7V58 A7V78 A7V80 A7V107 A7V117 A7V160

Series:

A7V Series Series 2.0 or 5.1

work pressure:

Rated pressure 28MPa, peak pressure 35MPa

Specifiion:

20,28,40,55,58,80,78,107,117,160,250,355,500

Control mode:

LV- Constant power variable; LVS- Constant power load sensing variable; DR- constant pressure variable; DRS- Constant pressure load sensing variable; MA- Manual variable; El-electric proportional control; HD- Hydraulic control.

Features:

The variable axial plunger element is equipped with tapered plunger rotor group of oblique shaft design, suitable for open loop hydraulic drive;

Used for walking machinery operation and industrial appliions;

The flow rate of the hydraulic pump is proportional to the speed and displacement of the pump, and varies stepless from qvmax to Qvmin =0;

A complete range of control devices for each control and regulation function;

Compact and rugged bearing system with long service life;

Can provide long service life bearings for special oil and very long service life requirements;

Can work with mineral oil and fire resistant liquid;

High performance rotating components and spherical oil distribution plate can realize automatic centering, low rotational speed and high efficiency;

Low noise level.

Rexroth pump A7V series A7V58MA1RPF00 A7V78LV1LZF00 A7V107LV1LZF00 A7V500LV5.0RPFH0 hydraulic piston pump

– The A7V pump is designed to operate in an open circuit

– System design, installation and commissioning must be performed by trained technicians or dealers.

– All hydraulic ports can only be used to install hydraulic work lines.

– The housing (especially the electromagnet) can be very hot during and shortly after operation of the pump, so avoid burns; take appropriate safety precautions (wear protective clothing).

– Depending on the operating conditions (operating pressure, oil temperature) of the axial piston element, the performance curve may deviate.

A7V Series Rexroth Variable Displacement Pump A7V20 A7V28 A7V50 A7V58 A7V78 A7V80 A7V107 A7V117 A7V160 1

A7V Series Rexroth Variable Displacement Pump A7V20 A7V28 A7V50 A7V58 A7V78 A7V80 A7V107 A7V117 A7V160 5

BTPS AVAILABLE

Better parts company specialize in research and development,production and sales of hydraulic products.We have more than 8 years experience focusing on the overseas Market.
