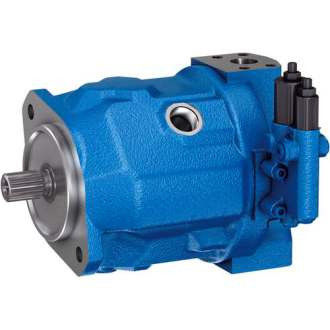

PKC62K01 A10VO45DFLR Rexroth Hydraulic Pump A10VSO A10VO A10VO28DFR/31R-PSC62NOO

PKC62K01 A10VO45DFLR Rexroth Hydraulic Pump A10VSO A10VO A10VO28DFR/31R-PSC62NOO

  • High Light

    A10VO45DFLR Rexroth Hydraulic Pump

    ,

    rexroth pump a10vso A10VO28DFR

    ,

    Rexroth Hydraulic Pump A10VSO A10VO

  • Model Number
    A10VSO28/45/71/100/140
  • Theory
    Rotary Pump
  • Pump Type
    PISTON PUMP
  • Dimension(L*W*H)
    600*400*400
  • Weight
    55
  • Material
    Import Material
  • Place of Origin
    China
  • Brand Name
    BTPS
  • Certification
    SGS,CE,ISO
  • Model Number
    A10VSO Series
  • Minimum Order Quantity
    1PCS
  • Price
    NEGOTIATION
  • Packaging Details
    wooden box
  • Delivery Time
    7days
  • Payment Terms
    T/T
  • Supply Ability
    200/MONTH

PKC62K01 A10VO45DFLR Rexroth Hydraulic Pump A10VSO A10VO A10VO28DFR/31R-PSC62NOO

PKC62K01 A10VO45DFLR Rexroth Hydraulic Pump A10VSO A10VO A10VO28DFR/31R-PSC62NOO 0

Rexroth pump A10VSO A10VO A10VO28DFR/31R-PSC62NOO PKC62K01 A10VO45DFLR A10VO28DFLR/31R-PSC62N00 A10VO45DFR/52L-PUC64N00



Safety instructions

- A10VSO pump is designed for use in open loop.

- Project planning, assembly and commissioning of axial piston units must be carried out by qualified personnel.

- Please read the instruction manual thoroughly before using the axial piston unit.

- Please obtain these manuals from Bosch Rexroth if necessary.

- There may be a risk of burning of axial piston units (especially electromagnets) during and shortly after operation. Appropriate safety measures should be taken (e.g. wearing protective clothing).

- Depending on the operating conditions of the axial piston unit (operating pressure, oil temperature), the characteristics may change.

- Working pipeline oil outlet:

· Oil opening and fixed thread design for maximum specified pressure. The manufacturer of the machine or system must ensure that the safety factor of the connecting elements and lines meets the specified operating conditions (pressure, flow, hydraulic fluid, temperature).

· Work line inlet and functional outlet are designed for hydraulic line only.

- Pressure cut-off and pressure control do not provide overvoltage protection. Separate relief valves are provided in the hydraulic system.

- The data and instructions contained herein must be followed.

- The product is not certified to meet the requirements of the general machine safety concept of DIN EN ISO 13849.

- Using the following tightening torque:

Joint:

Please refer to manufacturer's instructions for tightening torque of joints to be used.

· Mounting bolts: For mounting bolts conforming to DIN 13 ISO metric thread standards and ASME B1.1 thread standards, we recommend that the tightening torque be checked separately according to VDI 2230.

· Threaded hole of axial piston unit:

The maximum allowable tightening torque MG Max is the maximum for threaded holes and shall not exceed this value.

· Locking screw:

For metal lock screws supplied with axial plunger units, tightening torque MV is applied.



PKC62K01 A10VO45DFLR Rexroth Hydraulic Pump A10VSO A10VO A10VO28DFR/31R-PSC62NOO 1

PKC62K01 A10VO45DFLR Rexroth Hydraulic Pump A10VSO A10VO A10VO28DFR/31R-PSC62NOO 2

PKC62K01 A10VO45DFLR Rexroth Hydraulic Pump A10VSO A10VO A10VO28DFR/31R-PSC62NOO 3





SERIES A10VSOSeries    Series1/2/3
SPECIFICATION 28,45,71,100,140
WORKING PRESSURE Nominal pressure28MPa,Peak Pressure 35MPa
CONTROL METHOD DR - pressure control;
DP - parallel operation pressure control;
FR - flow control;
DFR - pressure and flow control;
LR - Hyperbolic Power Control;
MA - manual control;
EM - motor control;
HM-hydraulic control, control volume related;
HS - hydraulic control via servo/proportional valves;
EO - electric control;
HD - hydraulic control, pilot pressure related;
DS1 - auxiliary speed control;
DFE1 - Electro-hydraulic control system.
CHARACTERISTIC Axial piston pump with swash plate design, suitable for hydraulic transmission in open circuit;
Flow is proportional to input drive speed and displacement. By adjusting the angle of the swash plate, the output flow can be adjusted steplessly;
Excellent oil absorption characteristics;
low noise level;
long service life;
Modular design;
short response time;
Variable speed thru-shaft drive options;
Visual swing angle indicator;
Optional installation location;
Operation with HF fluids possible with reduced operating data There is a special version available for operation with HFC fluids.



  • The variable displacement axial piston pump type A4VSO in swashplate design is designed for open circuit hydrostatic drives
  • The flow is proportional to the input drive speed and displacement.
  • By adjusting the swashplate., it is possible to infinitely vary the flow.
  • Infinitely variable displacement Slot-controlled swashplate design.
  • Good suction characteristics
  • Permissible nominal operating pressure 350 bar
  • Low noise level,Long service life
  • Drive shaft capable of absorbing axial and radial loads
  • Modular design, Good power/weight ratio
  • Short control times
  • Through drive and pump combinations possible
  • Swash plate angle indicator
  • Optional mounting position
  • Operation on HF fluids under reduced operational,parameters
