Home > Products > Rexroth Hydraulic Piston Pump > Rexroth A11VO Hydraulic Pump A11VO95 A11VO130 A11VO190 A11VO145 A11VO75 Rexroth A11VLO130EP2D/10R-NZD12N00P

Rexroth A11VO Hydraulic Pump A11VO95 A11VO130 A11VO190 A11VO145 A11VO75 Rexroth A11VLO130EP2D/10R-NZD12N00P

Name: Rexroth A11VO Hydraulic Pump A11VO95 A11VO130 A11VO190 A11VO145 A11VO75 Rexroth A11VLO130EP2D/10R-NZD12N00P
Brand: BETTER PARTS Machinery Co., Ltd.
SKU: A11VO40, A11VO60, A11VO75, A11VO95, A11VO130, A11VO145, A11VO190,A11VO260
Price: 4,740.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: REXROTH

Certification: CE ISO 9001

Model Number: A11VO40, A11VO60, A11VO75, A11VO95, A11VO130, A11VO145, A11VO190,A11VO260

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: NIGOTIATION

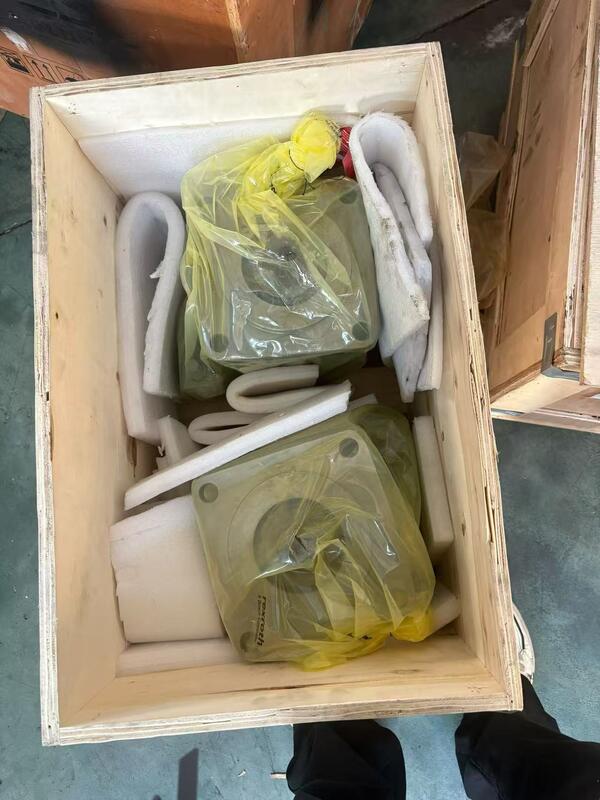

Packaging Details: standard

Delivery Time: 5 work days

Payment Terms: T/T,T/T

Supply Ability: 1000/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Warranty:	1 Year	Appliion:	Crawler Excavator,Bulldozer,Crawler Undercarriage,For Excavator,Excavator Undercarriage Parts
Color:	Black,customized Color	After-sales Service Provided:	Online Support,Video Technical Support
Usage:	Oil	Application:	Excavator
Fuel:	Hydraulic Oil	Power:	Hydraulic
Pressure:	High Pressure	Structure:	Hydraulic Piston Pump
Standard Or Nonstandard:	Standard	Theory:	Rotary Pump,plunger Pump
Material:	Cast Iron	Type:	Hydraulic Motors,Hydraulic Power Units

Warranty:	1 Year
Appliion:	Crawler Excavator,Bulldozer,Crawler Undercarriage,For Excavator,Excavator Undercarriage Parts
Color:	Black,customized Color
After-sales Service Provided:	Online Support,Video Technical Support
Usage:	Oil
Application:	Excavator
Fuel:	Hydraulic Oil
Power:	Hydraulic
Pressure:	High Pressure
Structure:	Hydraulic Piston Pump
Standard Or Nonstandard:	Standard
Theory:	Rotary Pump,plunger Pump
Material:	Cast Iron
Type:	Hydraulic Motors,Hydraulic Power Units

Product Description

Rexroth A11VO Hydraulic Pump A11VO95 A11VO130 A11VO190 A11VO145 A11VO75 Rexroth A11VLO130EP2D/10R-NZD12N00P

PRODUCT OVERVIEW

* All-purpose high pressure pump with through drive
* Size 40 … 260
* Nominal pressure 350 bar
* Maximum pressure 400 bar
* Open circuit
* Metric version
* All-purpose high pressure pump with through drive
* Open circuit
* Through drive for mounting of further pumps up to same nominal size
* Optional with charge pump for the nominal sizes 130…260
* Particularly high speeds are possible with impeller pump version (A11VLO)
* Large variety of controls
* Swashplate design

Product Series	A11VLO Axial Piston Variable Pump
Working Circuit	Open Circuit
Structure Type	Swash Plate Axial Piston Type
Rated Working Pressure	350 Bar (35 MPa)
Maximum Peak Pressure	400 Bar (40 MPa)
Displacement Range	40~260 ml/r (Full series specification)
Displacement Adjustment	0–100% Stepless Variable
Standard Control Modes	DR, LR, HD, EP
Operating Speed Range	600–2200 r/min (Depends on displacement)
Suction Pressure (Charge Pump Version)	0.6–2.0 Bar Absolute Pressure
Operating Temperature Range	-20℃ ~ +95℃
Recommended Hydraulic Oil	HLP Anti-wear Hydraulic Oil (DIN 51524)
Applicable Oil Viscosity	20–45 mm²/s
Volumetric Efficiency	≥ 94%
Comprehensive Efficiency	≥ 88%

Table of values

Size				40	60	75	95	130	145	190	260	130	145	190	260
Version				Standard								With charge pump
Displacement geometric, per revolution		Vg max	cm³	42	58.5	74	93.5	130	145	193	260	130	145	193	260
Nominal pressure		pnom	bar	350	350	350	350	350	350	350	350	350	350	350	350
Maximum pressure		pmax	bar	400	400	400	400	400	400	400	400	400	400	400	400
Maximum speed	at Vg max	nnom	rpm	3000 1)	2700 1)	2550 1)	2350 1)	2100 1)	2200 1)	2100 1)	1800 1)	2500 2)	2500 2)	2500 2)	2300 2)
Flow	at Vg max and nnom	qV nom	l/min	126	158	189	220	273	319	405	468	325	363	483	598
Power	at qV nom and pnom	P	kW	74	92	110	128	159	186	236	273	190	211	281	349
Torque	at Vg max and pnom	M	Nm	234	326	412	521	724	808	1075	1448	724	808	1075	1448
Weight (approx.)		m	kg	32	40	45	53	66	76	95	125	72	73	104	138

APPLICATION FIELDS

A11VLO series hydraulic pumps are widely used in heavy-duty mobile machinery and industrial hydraulic systems, including concrete pump trucks, excavators, loaders, road construction machinery, mining equipment, port handling machinery, large hydraulic stations and automated heavy-duty production lines. It provides stable, energy-saving and precise hydraulic power for high-load, long-duration and variable-load operating equipment, effectively improving equipment operating efficiency and operational stability.

MAIN MODEL SPECIFICATIONS

The A11VLO series covers full displacement specifications for diversified application matching: A11VLO40, A11VLO60, A11VLO75, A11VLO95, A11VLO130, A11VLO145, A11VLO190, A11VLO260. Each model supports customized control modes, rotation directions and sealing configurations to meet different equipment power and control requirements.

A11VO145LRDS/11R-NZD12N00
A11VLO145EP2D/11L-NZD12K04P
A11VLO145DRS/11R-NSD12K02
A11VLO190LE2S/11L-NZD12K81P
A11VLO190LRDU2/11R-NZD12K02P-S
A11VLO190LRDS/11R-NSD12K01
