BETTER PARTS Machinery Co., Ltd. bbonniee@163.com 86--13535077468
Product Details
Place of Origin: China
Brand Name: Rexroth
Model Number: 4WRTE
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: NIGOTIATION
Packaging Details: standard box
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000/month
Usage: |
Oil,Hydraulic Piston Pump |
Appliion: |
Hydraulic System,hydraulic Pumps,exvaor |
Structure: |
Piston Pump,Hydraulic Pumps |
Power: |
Hydraulic |
Pressure: |
High Pressure,Other |
Fuel: |
Hydraulic,oil |
Theory: |
Rotary Pump,Axial Flow Pump,hydraulic Pumps |
Standard Or Nonstandard: |
Standard |
Color: |
Black,Customer's Request |
Material: |
Cast Iron,Cast/Steel/Bronze/Ductile Iron And So On |
Product Name: |
Hydraulic Pumps,Genuine Rexroth Hydraulic Gear Pump |
Warranty: |
1 Year |
Condition: |
100%new,New Rexroth Pump,OEM New & Original,Oringal New |
Feature: |
High Efficiency,Long Life |
Type: |
Hydraulic Pump Rexroth |
Name: |
Rexroth Piston Pump,excavator Pump Parts Rexroth Pump Hydraulic Pumps |
Origin: |
China |
Usage: |
Oil,Hydraulic Piston Pump |
Appliion: |
Hydraulic System,hydraulic Pumps,exvaor |
Structure: |
Piston Pump,Hydraulic Pumps |
Power: |
Hydraulic |
Pressure: |
High Pressure,Other |
Fuel: |
Hydraulic,oil |
Theory: |
Rotary Pump,Axial Flow Pump,hydraulic Pumps |
Standard Or Nonstandard: |
Standard |
Color: |
Black,Customer's Request |
Material: |
Cast Iron,Cast/Steel/Bronze/Ductile Iron And So On |
Product Name: |
Hydraulic Pumps,Genuine Rexroth Hydraulic Gear Pump |
Warranty: |
1 Year |
Condition: |
100%new,New Rexroth Pump,OEM New & Original,Oringal New |
Feature: |
High Efficiency,Long Life |
Type: |
Hydraulic Pump Rexroth |
Name: |
Rexroth Piston Pump,excavator Pump Parts Rexroth Pump Hydraulic Pumps |
Origin: |
China |

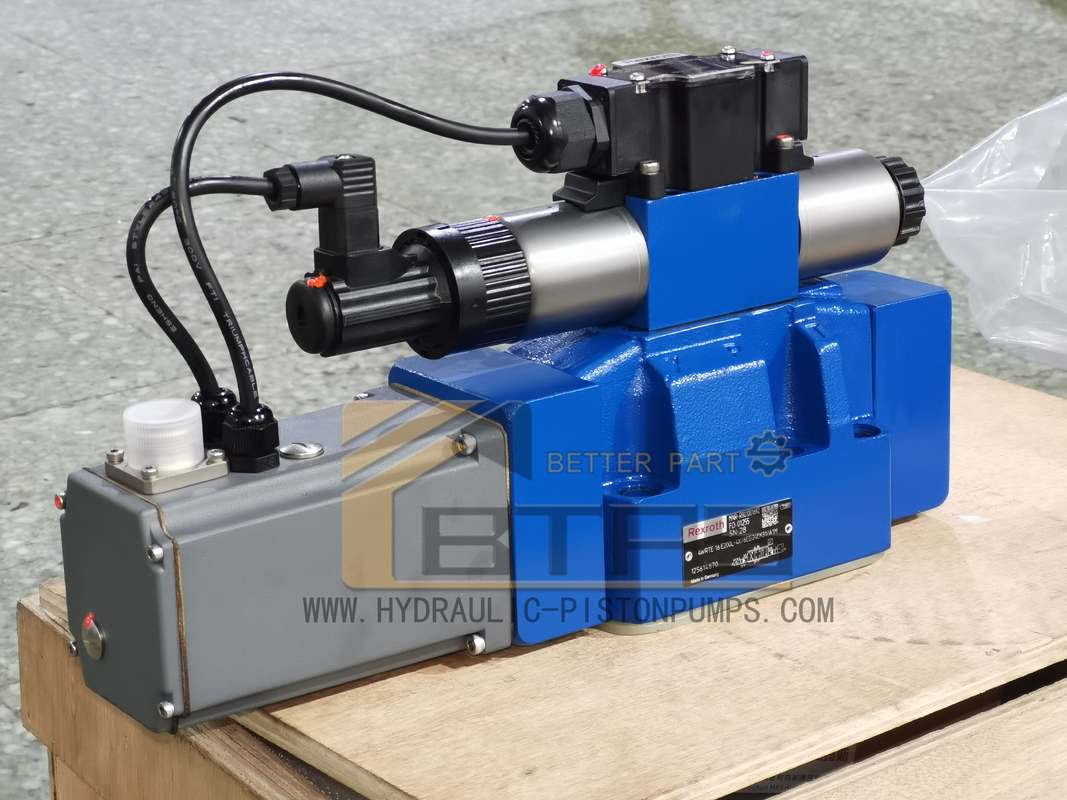

Rexroth High-response directional valves, pilot operated, with electrical position feedbackand integrated electronics (OBE) 4WRTE
Size 10 … 35
Component series 4X
Maximum operating pressure 350 bar
Maximum flow 3000 l/min
Nominal flow 25 … 1000 l/min
| Type | 4WRTE | ||||||
| Size | 10 | 16 | 25 | 27 | 32 | 35 | |
| Component series | 4X | ||||||
| Installation position | any, preferably horizontal | ||||||
| Earth | kg | 8.7 | 11.2 | 16.8 | 17 | 31.5 | 34 |
| Ambient temperature range | °C | -20 … +50 | |||||
| Sine test according to DIN EN 60068-2-6 | 10 ... 2000 Hz / maximum 10 g / 10 cycles / 3 axes | ||||||
| Noise test according to DIN EN 60068-2-64 | 20 ... 2000 Hz / 10 gRMS / 30 g peak / 30 min / 3 axes | ||||||
| Transport shock according to DIN EN 60068-2-27 | 15 g / 11 ms / 3 shocks / 3 axes | ||||||
| MTTFD values according to EN ISO 13849 1) | Years | 150 | |||||
| Damp heat according to DIN EN 60068-2-30 | Variant 2: +25 °C … +55 °C, 90 % … 97 % relative humidity, 2 cycles á 24 hours | ||||||
| 1) | With symbol E, E1, W6 and W8; in longitudinal control spool direction, there is sufficient positive overlap without shock/vibration load; observe the installation orientation with regard to the main direction of acceleration. |
| R900979016 | 4WRTE35E1-1000L-4X/6EG24EK31/A1M |
| R901253763 | 4WRTE35E1-1000L-4X/6EG24EK31/F1V |
| R901187312 | 4WRTE35E1-1000L-4X/6EG24ETK31/A1M |
| R901077004 | 4WRTE35E1-1000L-4X/6EG24K31/A1M |
| R901242220 | 4WRTE35E1-1000L-4X/6EG24K31/A1V |
| R901161014 | 4WRTE35E1-1000L-4X/6EG24K31/A1WB15M |
| R901349455 | 4WRTE35E1-1000L-4X/6EG24K31/F1M |
| R900762387 | 4WRTE35E1000L-4X/6EG24EK31/A1M |
| R900711869 | 4WRTE35E1000L-4X/6EG24ETK31/A1M |
| R900967988 | 4WRTE35E1000L-4X/6EG24K31/A1M |
| R901443247 | 4WRTE35E1000L-4X/6EG24K31/A1WB15M |
| R900757702 | 4WRTE35E1000L-4X/6EG24K31/F1M |
| R901428411 | 4WRTE35E1000P-4X/6EG24K31/A1M |
| R901207448 | 4WRTE35E3-1000L-4X/6EG24K31/A1M |
| R901007740 | 4WRTE35Q2-1000L-4X/6EG24EK31/A1M |
| R901407244 | 4WRTE35Q2-1000L-4X/6EG24ETK31/A5M |
| R900758758 | 4WRTE35Q2-1000L-4X/6EG24K31/A1M |
| R900966092 | 4WRTE35Q2-1000P-4X/6EG24ETK31/A1M |
| R900972121 | 4WRTE35Q2-1000P-4X/6EG24ETK31/A1WB152M |
| R901206645 | 4WRTE35Q2-1000P-4X/6EG24ETK31/A5M |
| R901172061 | 4WRTE35Q2-1000P-4X/6EG24ETK31/A5WB15M |
| R901069542 | 4WRTE35Q2-1000P-4X/6EG24K31/A1WB15M |
| R901021371 | 4WRTE35Q2-1000P-4X/6EG24K31/A5WB15M |
| R900760048 | 4WRTE35Q2-1000P-4X/6EG24TK31/A1M |
| R900729062 | 4WRTE35R1000L-4X/6EG24K31/A1M |
| R900759886 | 4WRTE35R1000L-4X/6EG24K31/A5M |
| R901055281 | 4WRTE35R3-1000L-4X/6EG24ETK31/F1M |
| R901008426 | 4WRTE35V1-1000L-4X/6EG24ETK31/A1M |
| R901026939 | 4WRTE35V1-1000L-4X/6EG24ETK31/A5M |
| R901212804 | 4WRTE35V1-1000L-4X/6EG24ETK31/F1M |
| R900972023 | 4WRTE35V1-1000L-4X/6EG24K31/A1M |
| R901223173 | 4WRTE35V1-1000L-4X/6EG24K31/A1V |
| R900731824 | 4WRTE35V1-1000L-4X/6EG24K31/A5M-280 |
| R900732765 | 4WRTE35V1-1000L-4X/6EG24K31/F1M |
| R901221545 | 4WRTE35V1000L-4X/6EG24EK31/F1M |
| R901309469 | 4WRTE35V1000L-4X/6EG24ETK31/F1M |
| R900974731 | 4WRTE35V1000L-4X/6EG24K31/A1M |
| R900978147 | 4WRTE35V1000L-4X/6EG24K31/A5M |
| R901135021 | 4WRTE35V1000L-4X/6EG24K31/A5WB15M |
| R901204542 | 4WRTE35V1000L-4X/6EG24K31/F1M |
| R901134181 | 4WRTE35V1000P-4X/6EG24ETK31/A1M-280 |
| R901360910 | 4WRTE35V1000P-4X/6EG24K31/A1M |
| R901116120 | 4WRTE35V1000P-4X/6EG24K31/A1M-280 |
| R901294422 | 4WRTE35V1000P-4X=6EG24TK31/A1V-956 |
| R900734707 | 4WRTE35V5-1000P-4X/6EG24TK31/A1M=LB |
| R901111512 | 4WRTE35W6-1000L-4X/6EG24EK31/F1M |
| R900772986 | 4WRTE35W6-1000L-4X/6EG24ETK31/A1M |
| R901369292 | 4WRTE35W6-1000L-4X/6EG24ETK31/F1M |
| R901120543 | 4WRTE35W6-1000L-4X/6EG24K31/A1M |
| R900772870 | 4WRTE35W6-1000L-4X/6EG24K31/A5M |
| R901349456 | 4WRTE35W6-1000L-4X/6EG24K31/F1M |
| R901250171 | 4WRTE35W8-1000L-4X/6EG24EK31/A1M |
| R901251104 | 4WRTE35W8-1000L-4X/6EG24EK31/A1V |
| R901252525 | 4WRTE35W8-1000L-4X/6EG24EK31/F1V |
| R901097373 | 4WRTE35W8-1000L-4X/6EG24ETK31/F1M |
| R901307851 | 4WRTE35W8-1000L-4X/6EG24K31/F1M |
| R901011140 | 4WRTE35W8-1000P-4X/6EG24EK31/F1M |
| R901146839 | 4WRTE35W9-1000L-4X/6EG24K31/A1M |
