Product Details
Place of Origin: China
Brand Name: BTPS/Rexroth
Model Number: 4WE6D62_EG24N99K4
Certifiion: ISO 9001
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Negotiation
Packaging Details: Box/wooden box
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 1000/week
Material: |
Casting,Aluminum Alloy |
Type: |
Valves,Hydraulic Control Valve,Rexroth |
Appliion: |
Engneering,mining |
Pressure: |
High Pressure,Medium Pressure |
Standard Or Nonstandard: |
Standard |
Power: |
Hydraulic,Hydraulic/Pneumatic |
Temperature Of Media: |
Medium Temperature,High Temperature |
Material: |
Casting,Aluminum Alloy |
Type: |
Valves,Hydraulic Control Valve,Rexroth |
Appliion: |
Engneering,mining |
Pressure: |
High Pressure,Medium Pressure |
Standard Or Nonstandard: |
Standard |
Power: |
Hydraulic,Hydraulic/Pneumatic |
Temperature Of Media: |
Medium Temperature,High Temperature |

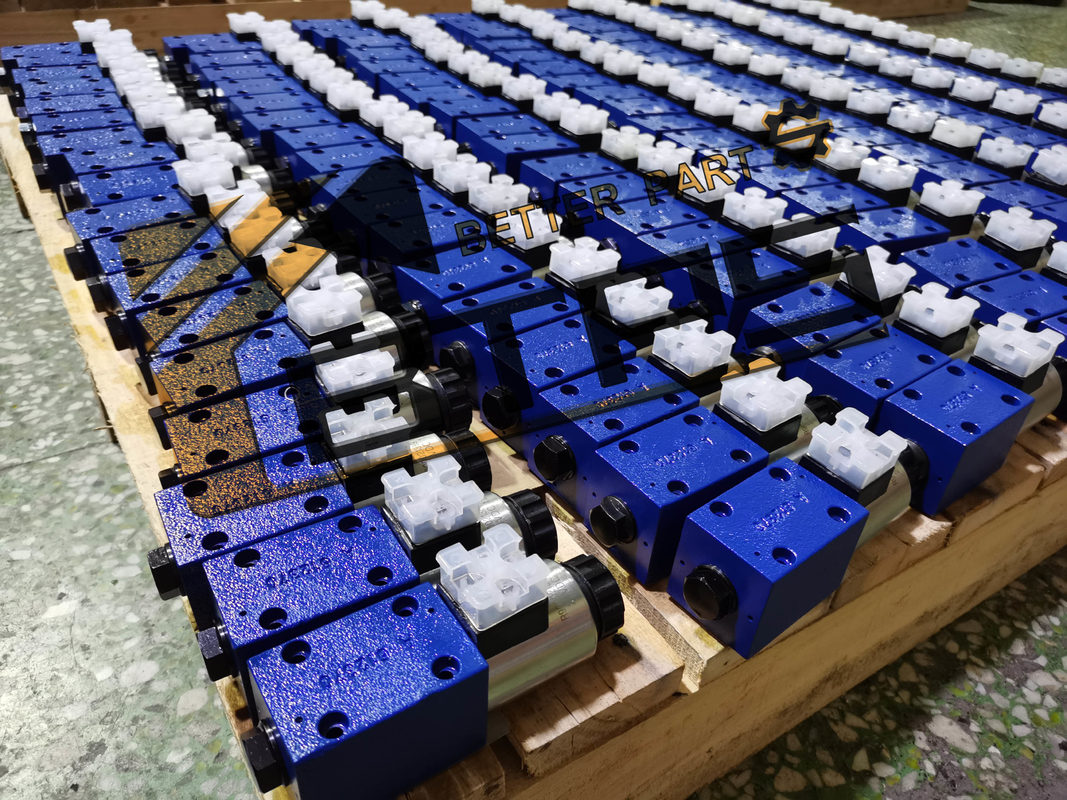

Factory sale Rexroth Valves 4WE6A 4WE6B 4WE6C 4WE6D 4WE6E 4WE6F 4WE6J 4WE6H 4WE6G 4WE6L 4WE6M 4WE6 4WE10 Hydraulic Valve
|
Parameter
|
Data
|
||
|
Weight
|
Valve with a coil(kg)
|
Single connection
|
Centering connection
|
|
3.9
|
4.0
|
||
|
Valve with two coils(kg)
|
5.5
|
5.6
|
|
|
Installation loion
|
Arbitrary
|
||
|
Ambient temperature range
|
Standard model (℃)
|
-20⋯+70(NBR seal) -15⋯+70 (FKM seal)
|
|
|
Models suitable for HFC hydraulic oil(℃)
|
-20⋯+50
|
||
|
Low temperature model(℃)
|
-40⋯+50
|
||
|
Storage temperature range(℃)
|
-20⋯+50
|
||
|
Maximum operating pressure
|
Port A, B, P(bar)
|
350
|
|
|
Port T(bar)
|
210
|
||
|
Maximum flow(l/min)
|
160
|
||
|
Hydraulic oil temperature range (at the valve working port)(℃)
|
–20 … +80 (NBR seal)
|
||
|
–15 … +80 (FKM seal)
|
|||
|
–20 … +50(HFC hydraulic oil)
|
|||
|
–40 … +50(Low temperature model)
|
|||
|
Viscosity range(mm2/s)
|
2.8 … 500
|
||
|
